Descrizione

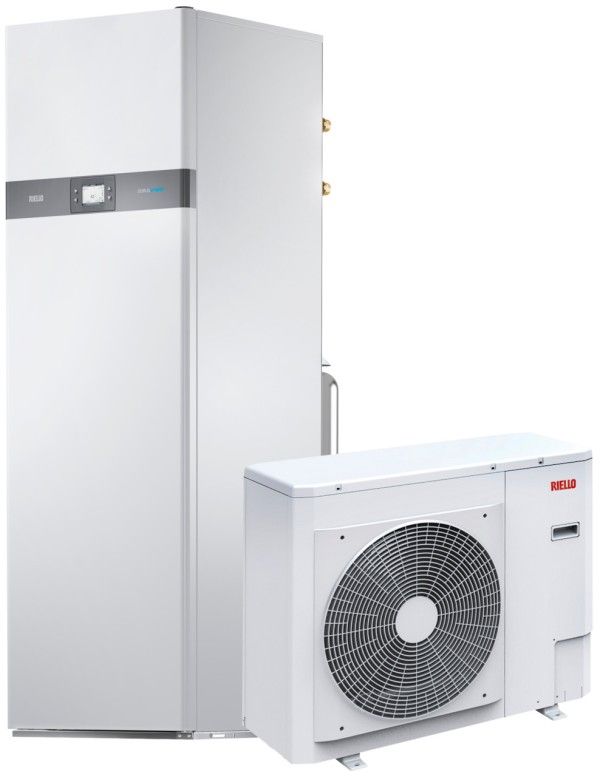

Domus Hybrid is a multi-energy hybrid system for heating, summer cooling and domestic hot water production, consisting of column unit housing a condensing gas boiler, a 200 litre heater with double coil and a control panel with system intelligence.

Domus Hybrid can be combined with NXH series air/water monobloc heat pumps for hybrid systems.

All components of the hybrid system interact with each other via communication BUS.

– Condensing boiler inside the column unit, available with the 2 powers of 25 and 35 kW with condensing heat exchanger, 1: modulation ratio and "Range Rated" certification that allows the nominal power to be adjusted to the actual heat demand of the system.

– Column unit equipped with hydraulic separator, diverting valve for domestic hot water production, 200 litre double coil heater, prearranged for control of a direct zone through a low consumption self-modulating circulator. Up to 2 additional zone control kits can be installed inside the column unit, each one with low-consumption self-modulating circulator, order to manage up to 3 independent temperature zones.

– Control panel for the entire system with large, intuitive and descriptive display; the panel is the system intelligence, capable of activating the most energy-efficient heat source. It can be removed from the column unit and installed inside the house.

– Intelligent system filling that can be activated from system control panel.

– It can be combined with a monobloc air-water heat pump equipped with BUS communication with the system intelligence, available with 5, 7, 11 and 15 kW power.

Heating, cooling and domestic hot water production
Intelligent management of two energy sources: condensing boiler and heat pump
Possibility to control up to 3 indoor zones
